Radio astronomy opened humanity's eyes to an invisible universe. While optical telescopes revealed stars and galaxies visible to the naked eye, radio telescopes discovered quasars, pulsars, the cosmic microwave background, and revealed the structure of our own galaxy. Understanding the principles behind radio astronomy is key to appreciating what you're observing with RadioSky.
The Electromagnetic Spectrum
Light is just one small slice of the electromagnetic spectrum. All electromagnetic radiation—from radio waves to gamma rays—consists of oscillating electric and magnetic fields traveling through space at the speed of light (c = 299,792,458 m/s).
Frequency and Wavelength
The relationship between frequency (f) and wavelength (λ) is fundamental:
where c = 3 × 108 m/s
The radio spectrum spans roughly 3 kHz to 300 GHz (wavelengths from 100 km down to 1 mm). Radio astronomy typically focuses on:
- VHF: 30-300 MHz (10-1 m) - Jupiter's emissions, solar bursts
- UHF: 300-3000 MHz (1 m-10 cm) - Hydrogen line at 1420 MHz
- Microwave: 3-30 GHz (10-1 cm) - Pulsars, molecular lines
- Millimeter: 30-300 GHz (10-1 mm) - CMB, molecular clouds
Why Radio Astronomy?
Advantages Over Optical Astronomy
- Dust Penetration: Radio waves pass through interstellar dust that blocks visible light
- Day/Night Operation: Observe 24 hours a day—sunlight doesn't interfere
- Weather Independence: Clouds are transparent to many radio frequencies
- Unique Phenomena: Many cosmic objects emit primarily in radio (pulsars, molecular clouds)
- Velocity Measurements: Doppler shifts precisely measure motion
What Produces Radio Waves?
Cosmic radio emission comes from several physical processes:
- Thermal Emission: Hot gas emits blackbody radiation (e.g., HII regions)
- Synchrotron Radiation: Relativistic electrons spiraling in magnetic fields (supernova remnants, jets)
- Atomic/Molecular Transitions: Specific frequencies from quantum transitions (21cm hydrogen line)
- Maser Emission: Cosmic microwave amplification (water, hydroxyl masers)
- Plasma Emission: Solar radio bursts from plasma oscillations

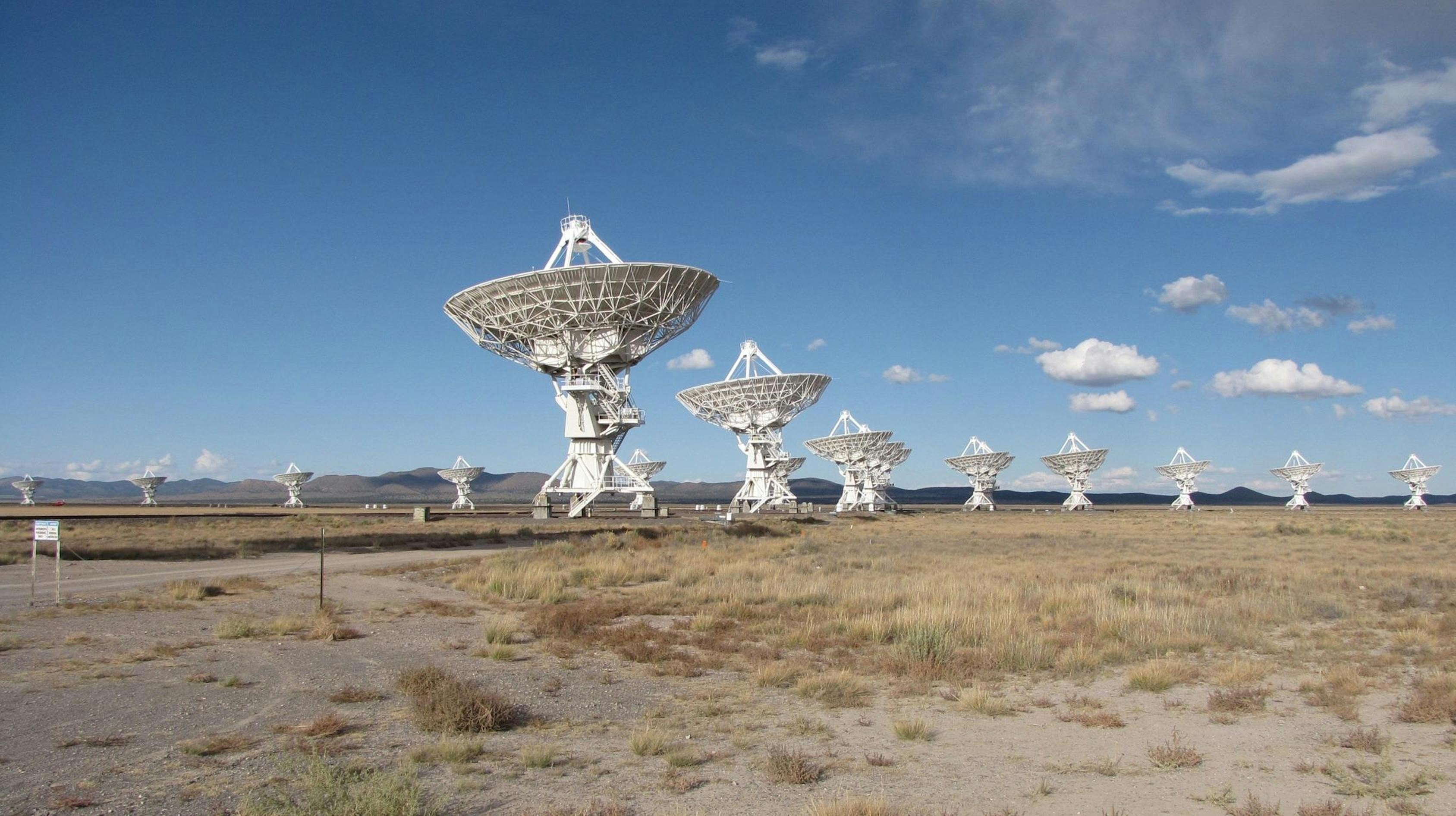

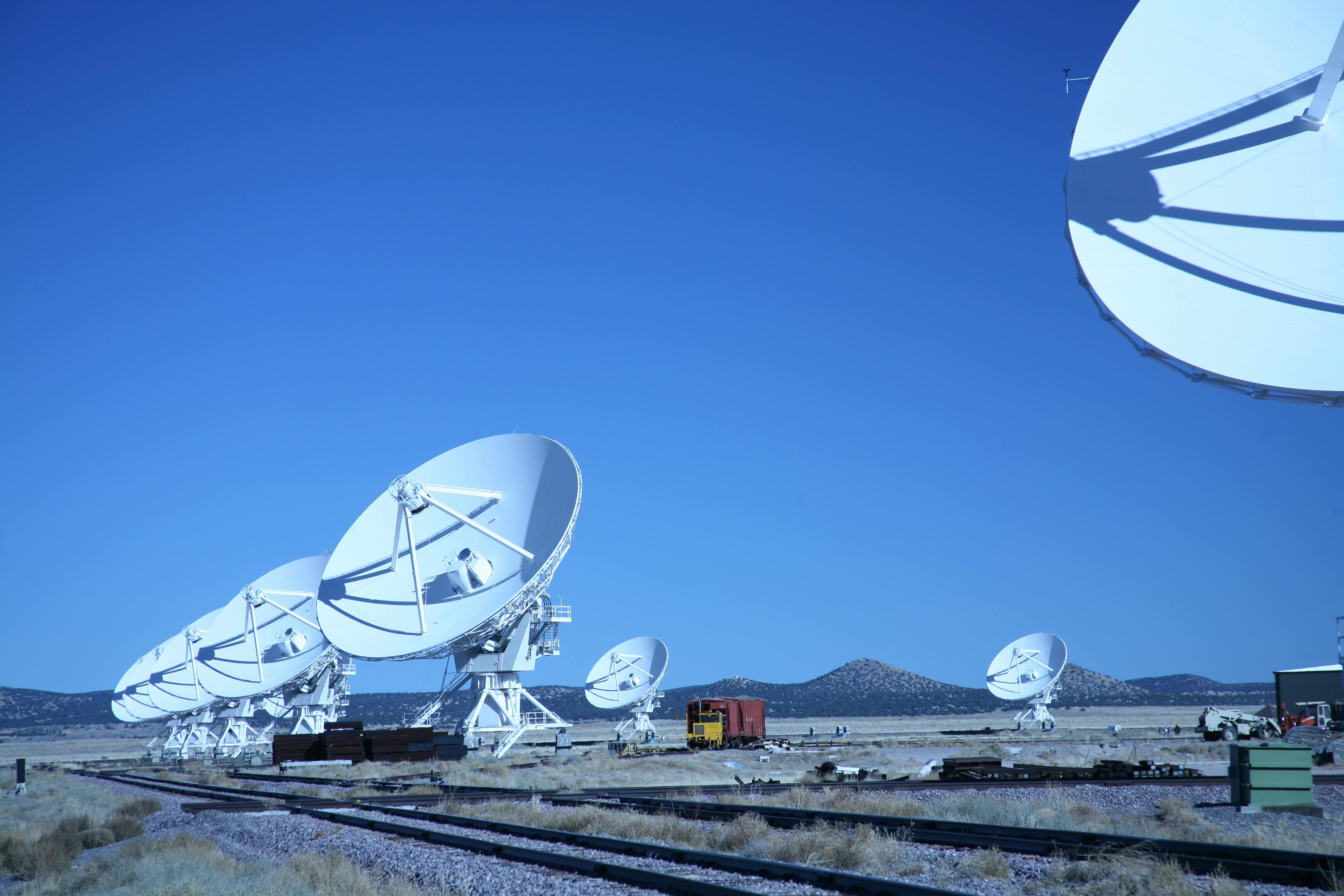

How Radio Telescopes Work
The Basic System
A radio telescope system consists of several key components working together:
- Antenna: Collects radio waves from a specific direction
- Feedhorn/LNA: Concentrates signal and amplifies with minimal noise
- Receiver: Converts radio frequency to digital signal (RTL-SDR)
- Digital Backend: Processes and analyzes the signal (your computer/phone)
Antenna Fundamentals
The antenna is your window to the radio universe. Key concepts:
Gain (G) = 4π Aeff / λ²
Beamwidth (θ) ≈ 1.22 λ / D radians
Where D is dish diameter, λ is wavelength, and η is efficiency (~50-70%).
- Beamwidth: ~15 degrees
- Effective area: ~0.5 m²
- Gain: ~18 dBi
Signal Processing and Fourier Analysis
From Time to Frequency Domain
Radio signals are initially captured as voltages varying over time. To see different frequencies, we use the Fast Fourier Transform (FFT), which converts time-domain signals into frequency-domain spectra.
The FFT reveals:
- Which frequencies contain energy (spectral lines)
- How much power at each frequency (intensity)
- Narrow-band signals (RFI or spacecraft) vs broad emission
Integration and Averaging
Cosmic signals are incredibly weak. We improve detection through integration:
where t = integration time, B = bandwidth
Averaging multiple spectra reduces random noise while preserving the real signal. This is why RadioSky uses 10-60 second integration times.
Spectral Resolution
The frequency resolution of your observation depends on:
For 2.4 MHz / 1024: Δf ≈ 2.3 kHz
Higher resolution reveals finer spectral features but requires longer processing time and more data storage.
The Doppler Effect
One of radio astronomy's most powerful tools is the Doppler shift—the change in observed frequency due to relative motion:
for v << c (non-relativistic)
For the 21cm hydrogen line:
- Galaxy rotating toward us: frequency shifts higher (blue shift)
- Galaxy rotating away: frequency shifts lower (red shift)
- 1 km/s velocity: ~4.7 kHz shift at 1420 MHz
By measuring Doppler shifts across the galactic plane, you can map the Milky Way's rotation curve and infer the presence of dark matter!
Radiometry and System Temperature
Antenna Temperature
Radio astronomers often express received power in terms of temperature:
where k = Boltzmann constant (1.38 × 10-23 J/K)
The "antenna temperature" is the temperature a resistor would need to produce equivalent noise power. Typical values:
- Cold sky: 5-10 K
- Milky Way plane: 20-50 K
- Sun: 10,000+ K (very bright!)
- Strong hydrogen line: adds a few Kelvin
System Noise Temperature
Your total system noise combines:
For RTL-SDR without LNA: Treceiver ≈ 300 K (room temperature noise figure)
With good LNA: Treceiver ≈ 50 K (much better!)
Radio Frequency Interference (RFI)
RFI is the bane of radio astronomy—artificial signals from human technology that overwhelm cosmic signals. Common sources:
- WiFi routers (2.4 GHz, 5 GHz)
- Cell phone towers (700 MHz - 2.6 GHz)
- Satellites (1-2 GHz heavily used)
- Power lines (harmonics across spectrum)
- Microwave ovens, Bluetooth, etc.
Mitigation Strategies
- Location: Rural areas have less RFI than cities
- Filtering: SAW filters block out-of-band interference
- Time-domain flagging: Detect and remove RFI spikes
- Frequency flagging: Identify and mask contaminated channels
- Averaging: Multiple observations average out transient RFI
Calibration
Why Calibrate?
Raw measurements are relative—calibration converts them to absolute physical units. This requires:
- Gain Calibration: Observe sources of known brightness
- Baseline Subtraction: Remove instrumental contributions
- Bandpass Correction: Account for frequency-dependent response
Calibration Sources
For consumer equipment, simple calibration uses:
- Cold sky: Point at zenith away from galactic plane
- Hot load: Point at ground or cover antenna with absorber
- Relative measurement: Y-factor method (hot vs cold)
From Detection to Science
Once you're detecting cosmic signals, real science begins:
- Position Mapping: Scan across the sky to create intensity maps
- Velocity Measurements: Analyze Doppler shifts to measure motion
- Time Series: Monitor variable sources (pulsars, solar flares)
- Spectroscopy: Identify molecular lines to determine composition
- Multi-wavelength: Combine with optical data for complete picture
Modern Developments
Software-Defined Radio (SDR)
SDR revolutionized radio astronomy by replacing analog receivers with digital processing:
- Flexible frequency coverage with software tuning
- Complex signal processing in real-time
- Easy data recording and post-processing
- Affordable access (RTL-SDR dongles ~$25)
Distributed Arrays and Citizen Science
Projects like RadioSky demonstrate that coordinated amateur observations can provide value:
- Temporal coverage—observe 24/7 globally
- Transient detection—quick alerts for professional follow-up
- Educational impact—hands-on learning at scale
- Technology development—test bed for future systems
Conclusion: The Radio Universe Awaits
Radio astronomy principles may seem complex, but they're built on fundamental physics: electromagnetic waves, Fourier analysis, signal amplification, and noise reduction. Understanding these concepts transforms you from passive hobbyist to active observer of cosmic phenomena.
With RadioSky and an RTL-SDR, you're not just pointing an antenna at the sky—you're:
- Measuring the Doppler shift of rotating galaxies
- Detecting neutral hydrogen throughout the Milky Way
- Learning radio engineering and signal processing
- Contributing to a global network of citizen scientists
- Experiencing the same thrill of discovery that drives professional astronomers
Further Reading
- Condon & Ransom. (2016). "Essential Radio Astronomy"
- Wilson et al. (2013). "Tools of Radio Astronomy" (6th edition)
- Thompson, Moran, & Swenson. (2017). "Interferometry and Synthesis in Radio Astronomy"
- NRAO Essentials of Radio Astronomy course (free online)
